This blog post shows how to marry two free online data tools: Tableau Public and Google Trends. Why? Because you might want to quickly check how certain categories in your data have fared in search over time relative to one another. {Disclaimer: this tutorial will only be valid as long as Google keeps it’s Google Trends URL scheme the same. I learned the hard way with my Google Maps + Tableau tutorial that you just can’t bank on Google leaving things the same for very long.}

It’s in response to a question posted by Alexandra Samuel on twitter:

I had given a crack at using Google Trends data in Tableau a year and a half ago with an Ebola scare viz, but it involved a very manual process of downloading the CSV out of Google Trends. Hardly the web data connector experience Alexandra was looking for. Fellow Tableau geek Eric Peterson did some digging and found out that Google does not have an API for Google Trends:

So end of the road? Are we out of luck if we want to automatically pull search interest data into Tableau until Google makes an API for Google Trends? Not entirely. Here’s my solution (using fast food survey data in honor of Tableau Public’s Food Viz Month theme), and you’ll find a tutorial on how I built it below:

How to Add Google Trends Data to a Tableau Dashboard

The trick to do this involves two key elements:

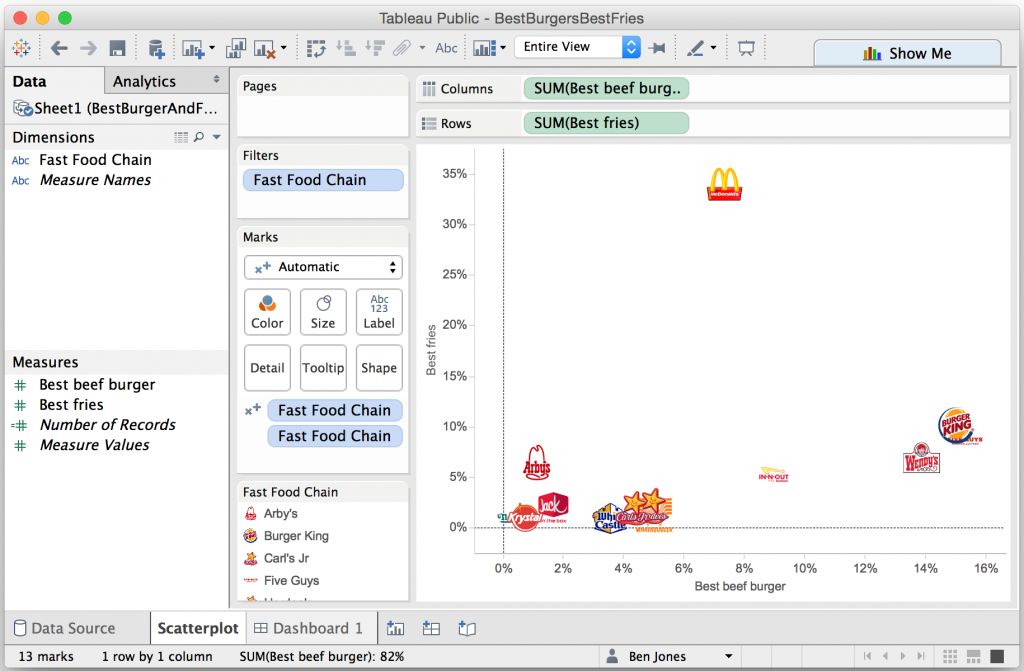

Step 1: Build a new Sheet

This part was totally straightforward. I created a basic Excel table out of YouGov survey results where respondents said which restaurant had the best burgers and which had the best fries. Then I dragged “Best beef burger” to the Columns shelf and “Best fries” to the Rows shelf, adding the fast food logos by dragging “Fast Food Chain” to Shape and making sure I had a folder with the logo png files inside my Documents/My Tableau Repository/Shapes folder. Easy.

Step 1: Create a new sheet

Step 1: Create a new sheet

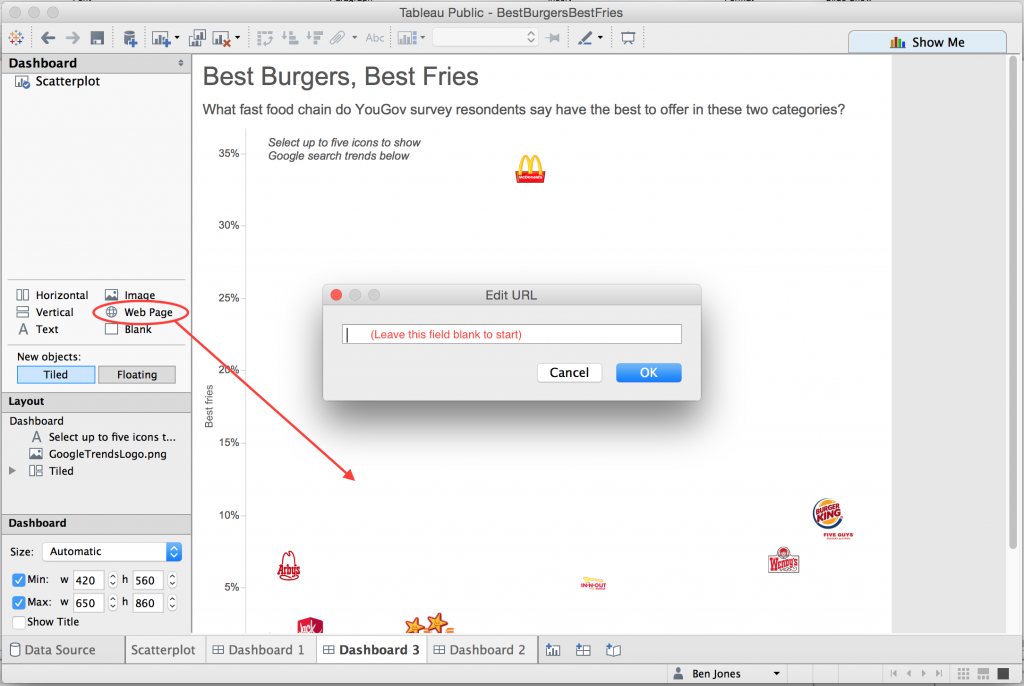

Step 2: Create a new dashboard and add a blank Web Page object

Once I had build my scatterplot, I created a new Dashboard, dragged the scatterplot sheet onto it, and the dragged a new Web Page object from the section on the left middle panel and just leaving the Edit URL field in the resulting dialog box blank by clicking OK:

Step 2: Add a blank Web Page object to the Dashboard

Step 2: Add a blank Web Page object to the Dashboard

Step 3: Create a new URL Dashboard Action

Now that the Web Page object is out on the dashboard, I can control which website gets shown inside the box by creating a URL Dashboard Action. To do so, click Dashboard > Action > Add Action > URL.

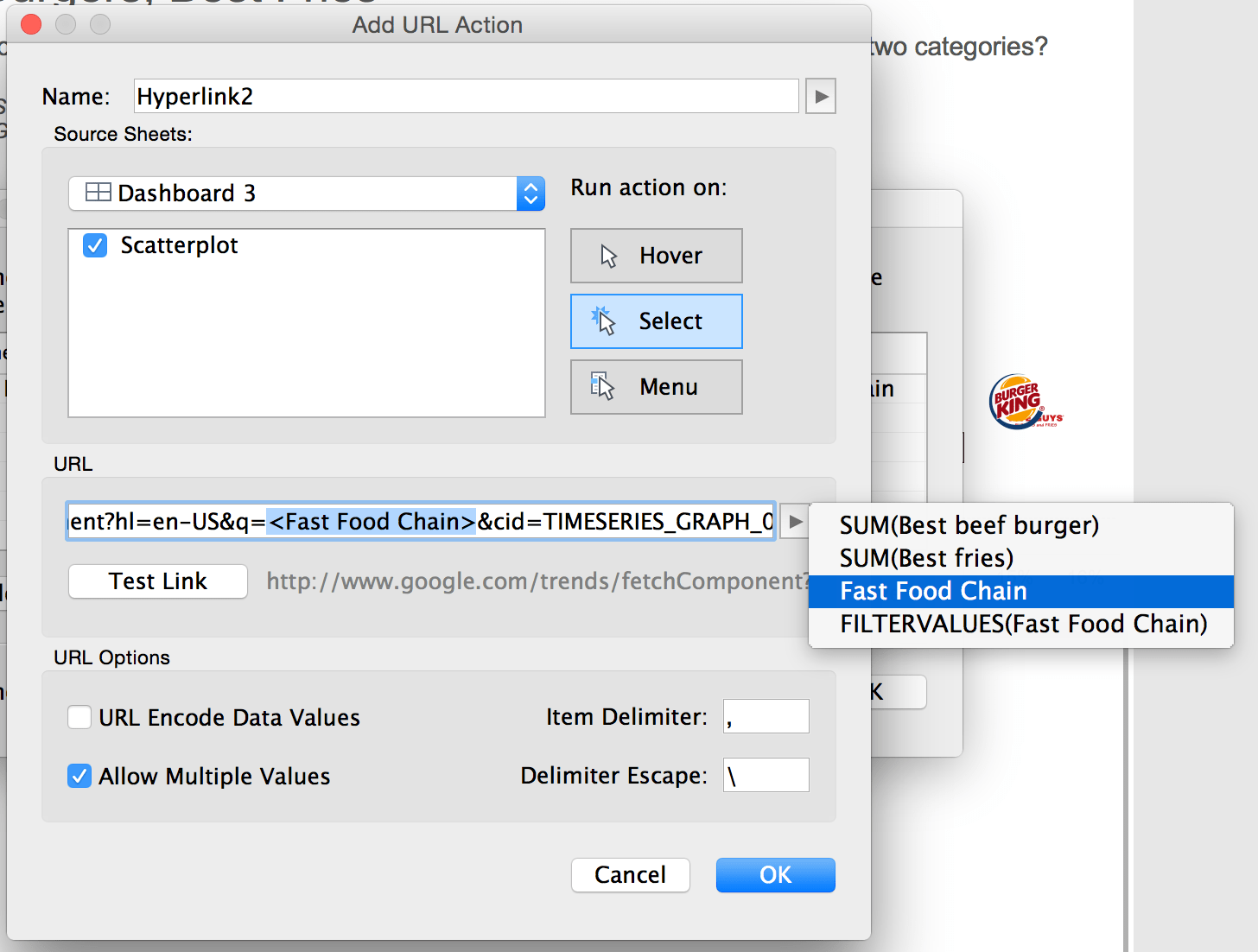

Step 4: Build the Google Trends URL in the URL Action dialog:

The trick is to copy and paste this URL into the Edit URL field:

https://www.google.com/trends/fetchComponent?hl=en-US&q=DIMENSION_FIELD_NAME&cid=TIMESERIES_GRAPH_0&export=5&w=500&h=300

where instead of DIMENSION_FIELD_NAME you would put the data field that contains the values you want to compare in search interest. In our case, it’s the field Fast Food Chain surrounded by angle brackets. Notice that I also changed the URL to run on Select instead of Menu, and I made sure to allow for multiple select by checking the box at the bottom:

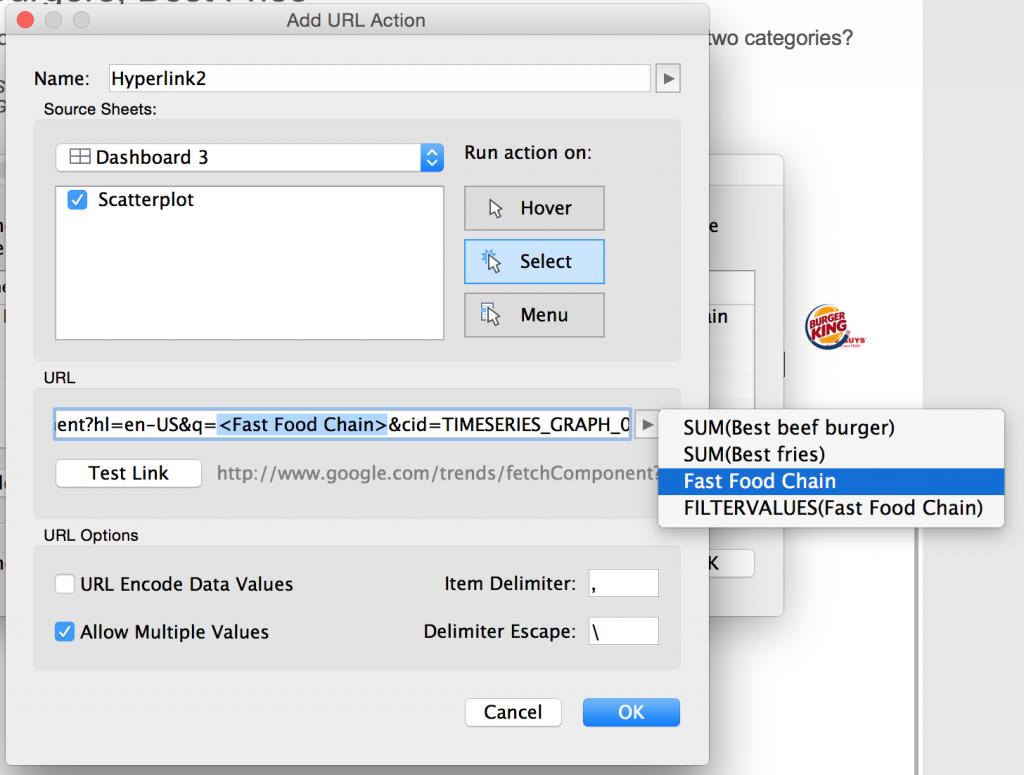

Step 4: Build the URL Action

Step 4: Build the URL Action

That’s it! A word of caution: Google Trends seems to have a search quota, so you might hit your limit like I did when creating this dashboard and trying different things, hitting the trends site from the same IP address over and over. The good news is if you want a couple hours, you should be good to go again. At least that’s how it was for me.

Obviously this isn’t quite as awesome as accessing the actual raw search trends data itself directly within a Tableau workbook, but I think it’s a pretty good half-way solution. One limitation is that you can’t control the colors of the timelines in the Web Page object, which makes it tough to coordinate your dashboard colors. That’s one reason I used logo images instead of colors to differentiate between the restaurants in the scatterplot

I think this tip could be taken to a whole different level by embedding Google Trends maps, or searching within countries, etc. All you’d need to do is figure out how Google Trends controls these parameters by looking at the URL that it creates when you do a search.

Okay, thanks for reading. I hope this was helpful to you. Let me know if you find a way to improve on it!

Ben
